TEES & CROSSES

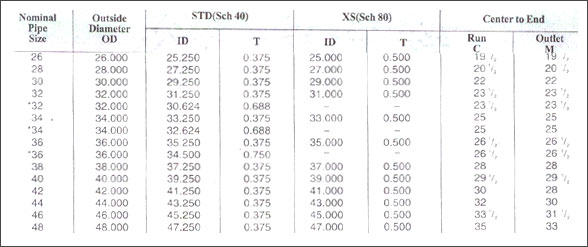

| TEES ( STRAIGHT) STD (SCH 40), XS (Sch 80) |
 |
 |

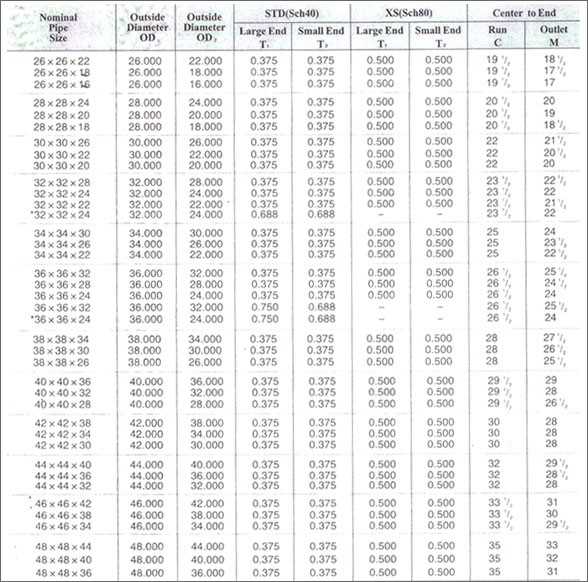

| TEES ( REDUCING) |
 |
 |
 |
 |
Nominal Diameter |
Outside Diameter |
Center To end |
||
Mm |
In |
D1×D2 |
C |
M |
20×20 |
3/4×3/4 |
25×25 26.7×26.7 |
29 |
29 |
20×15 |
3/4×1/2 |
25×20 26.7×21.3 |
29 |
29 |
25×25 |
1×1 |
32×32 33.4×33.4 |
38 |
38 |
25×20 |
1×3/4 |
32×25 33.4×26.7 |
38 |
38 |
32×32 |
1.1/4×1.1/4 |
38×38 42.2×42.2 |
48 |
48 |
32×35 |
1.1/4×1 |
38×32 42.2×33.4 |
48 |
48 |
40×40 |
1.1/2×1.1/2 |
45×45 48.3×48.3 |
57 |
57 |
40×25 |
1.1/2×1 |
45×32 48.3×33.4 |
57 |
57 |
50×50 |
2×2 |
57×57 60.3×60.3 |
64 |
64 |
50×25 |
2×1 |
57×32 60.3×33.4 |
64 |
51 |
65×65 |
1.1/2×1.1/2 |
76×76 73×73 |
76 |
76 |
65×40 |
2.1/2×1.1/2 |
76×45 73.0×48.3 |
76 |
67 |
80×80 |
3×3 |
89×89 |
86 |
86 |
80×50 |
3×2 |
89×57 88.9×60.3 |
86 |
76 |
100×100 |
4×4 |
108×108 114.3×114.3 |
105 |
105 |
100×50 |
4×2 |
108×57 114.3×60.3 |
105 |
89 |
125×125 |
5×5 |
133×133 141.3×141.3 |
124 |
124 |
125×80 |
5×3 |
133×89 141.3×88.9 |
124 |
111 |
150×150 |
6×6 |
159×159 168.3×168.3 |
143 |
143 |
150×100 |
6×4 |
159×108 168.3×114.3 |
143 |
130 |
200×200 |
8×8 |
219×219 |
178 |
178 |
200×100 |
8×4 |
219×108 219.1×114.3 |
178 |
156 |
250×250 |
10×10 |
273×273 |
216 |
216 |
250×125 |
10×5 |
273×133 273.1×141.3 |
216 |
191 |
300×300 |
12×12 |
325×325 323.9×323.9 |
254 |
154 |
300×200 |
12×8 |
325×219 323.9×219.1 |
254 |
229 |
Nominal Diameter |
Outside Diameter |
Center To end |
||
mm |
in |
D1×D2 |
C |
M |
350×350 |
14×14 |
377×377 355.6×355.6 |
279 |
279 |
350×200 |
14×8 |
377×219 355.6×219.1 |
279 |
248 |
400×400 |
16×16 |
426×426 406.4×406.4 |
305 |
305 |
400×250 |
16×10 |
426×273 406.4×273.1 |
305 |
283 |
450×450 |
18×18 |
478×478 457×457 |
343 |
343 |
450×250 |
18×10 |
478×273 457×273.1 |
343 |
308 |
500×500 |
20×20 |
529×529 508×508 |
381 |
381 |
500×300 |
20×12 |
529×325 508×323.9 |
381 |
346 |
550×550 |
22×22 |
559×559 |
419 |
419 |
550×400 |
22×16 |
559×406.4 |
419 |
381 |
600×600 |
24×24 |
630×630 610×610 |
432 |
432 |
600×400 |
24×16 |
630×426 610×406.4 |
432 |
406 |
650×650 |
26×26 |
660×660 |
495 |
495 |
700×700 |
28×28 |
720×720 711×711 |
521 |
521 |
700×400 |
28×16 |
720×426 711×406.4 |
521 |
457 |
750×750 |
30×30 |
762×762 |
559 |
559 |
750×500 |
30×20 |
762×508 |
559 |
508 |
800×800 |
32×32 |
820×820 813×813 |
597 |
597 |
800×500 |
32×20 |
820×529 813×508 |
597 |
533 |
850×850 |
34×34 |
864×864 |
635 |
635 |
850×600 |
34×24 |
864×610 |
635 |
584 |
900×900 |
36×36 |
920×920 914×914 |
673 |
673 |
900×500 |
36×20 |
920×529 914×508 |
673 |
584 |
950×950 |
38×38 |
965×965 |
711 |
711 |
950×600 |
38×24 |
965×610 |
711 |
635 |
1000×1000 |
40×40 |
1020×1020 1016×1016 |
749 |
749 |
1100×700 |
44×28 |
1020×720 1118×711 |
813 |
698 |
1150×1150 |
46×46 |
1168×1168 |
851 |
800 |
1150×800 |
46×32 |
1168×813 |
851 |
749 |
1200×1200 |
48×48 |
1220×1220 1219×1219 |
889 |
838 |
1200×650 |
48×26 |
1219×660 |
889 |
762 |
